Diamond Products

Joint Cutting Saws CC1000 & CC1100XL

Joint Cutting Saws CC1000 & CC1100XL

$3,660.00 USD
$3,326.99 USD $3,660.00 USD
Sale Sold out

SKU: 46851

Type
Arbor
Engine

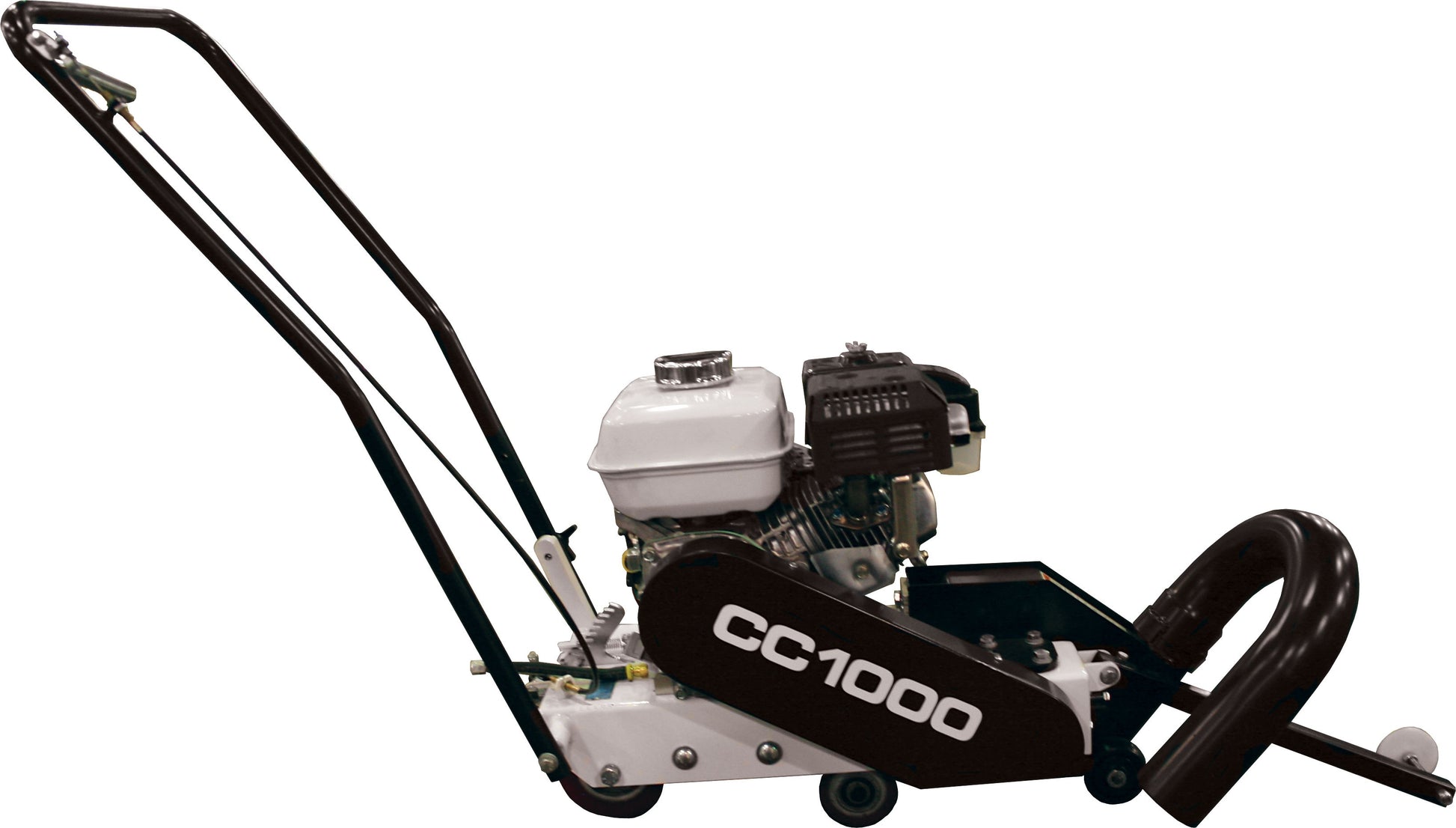

CC1000 Features & Benefits:

  • 8" Blade Capacity / Gasoline / Electric
  • Power transference to blade drive via 2 molded notch 3VX premium belts for better cutting performance and long belt life
  • Easy to maneuver push drive
  • Cyclone air cleaner for increased engine longevity
  • Center cut design making it easier to keep the cut straight
  • Dust diverter keeps the cut line clean
  • Upcut design for a cleaner cut
  • Adjustable blade alignment
  • 1/8” steel frame
  • 1” or 5/8” arbor with grease bearings

Specifications:

Maximum depth of cut with 8” blade: 2-1/4”
Blade shaft RPM: 3,800 3,800
Blade shaft diameter: 1” 1”
Arbor Size: 1” or 5/8” option 1” or 5/8” option
Front Wheels: 3” x 2” x 3/4” 3” x 2” x 3/4”
Rear Wheels: 5” x 2” x 3/4” 5” x 2” x 3/4”
Power Source Engine/Motor Make Part Number Catalog Number
Electric Baldor 5800552 47104
Electric Baldor - 5/8" shaft 5800716 63217
Gas Honda® GX160 5800551 46851
Gas Honda GX160-5/8" shaft 5800620 82084

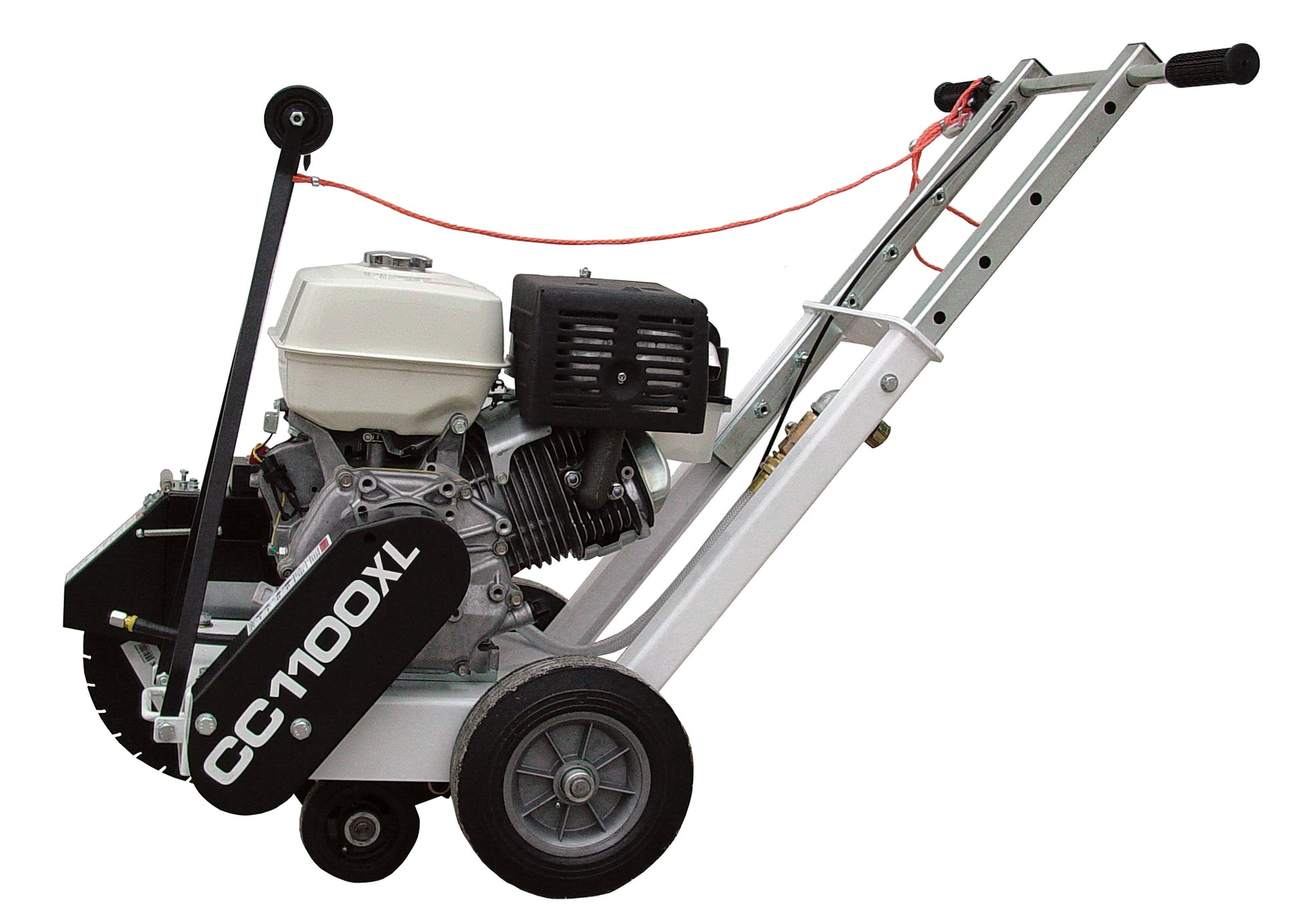

CC1100XL Features & Benefits:

  • 14” Blade Capacity / Gasoline
  • Heavy duty adjustable operator handles
  • Easy to maneuver push drive
  • Upcut or downcut available
  • 1” arbor Size with drive pin
  • Compact Size for easy transporting

Specifications:

Maximum depth of cut with 14" blade: 4-5/8”
Blade shaft RPM: 2,650
Blade shaft diameter: 1”
Arbor Size: 1"
Front Wheels: 3” x 2” x 3/4”
Rear Wheels: 8” x 2” x 3/4”
Blade Capacity Power Source Engine/Motor Make Part Number Catalog Number
14" Gas Honda GX390-Downcut 5801015 04648
14" Gas Honda GX390-Upcut 5801020 08366

Part #'s and its respective CAT #'s where applicable, 46851 47104 63217 82084 4648
