Diamond Products

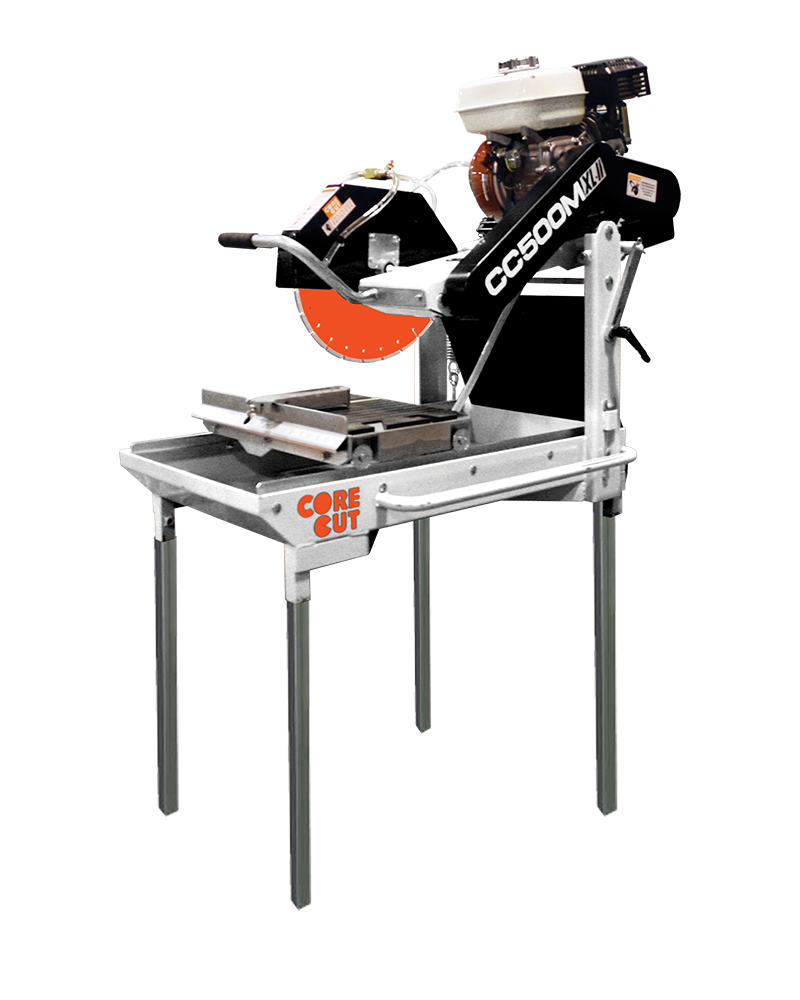

CC500MXL2 Masonry Saw
CC500MXL2 Masonry Saw
Regular price
$3,176.00 USD
Regular price
$2,886.99 USD
Sale price
$3,176.00 USD
Unit price
/
per
SKU: 03725
Couldn't load pickup availability
Features & Benefits:
- Stay level blade guard
- Removable cutting head

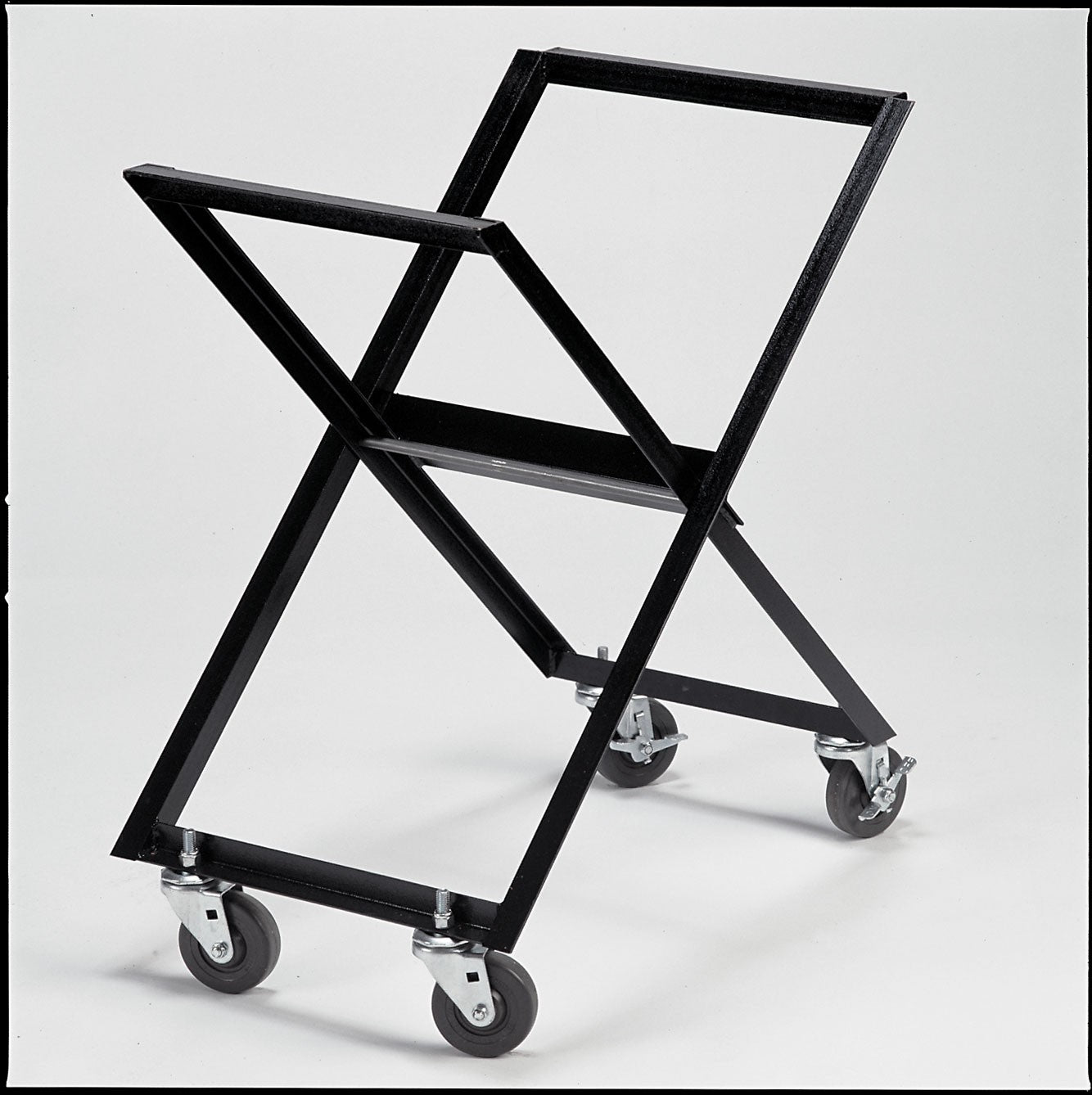

- Leg kit standard-folding stand optional
- Side carrying handles
- Replaceable conveyor cart rails
- Includes water pump
- Vulcanized rubber coated material slide cart
- Open throat cutting
- Easy and safe access to depth control lock
- Open back cutting allows longer material to be cut
- Heavy duty frame design help resist damage to saw body
- Reinforced slide rails keep the cart running smoothly
- Simple yet strong design allows easy maintenance
- Sealed drain hole on the bottom of the tray allows quick clean up
Specifications:
Maximum Depth of Cut: |
5” |
Blade Shaft Diameter: |
7/8” |
Arbor Diameter: |
1” |
Blade Shaft Bearings: |
Flange block ball bearings |
Blade Shaft Drive: |
2 belt |
Blade Mounting: |
Right (electric), Left (gas) |

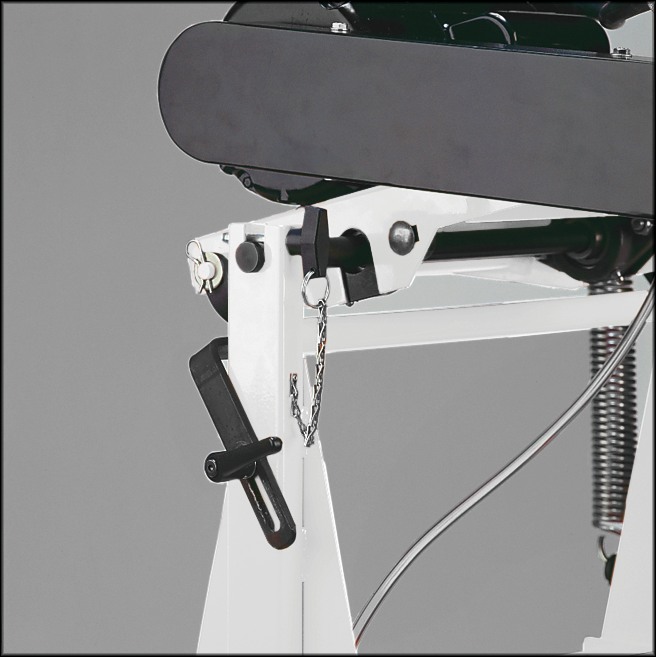

Blade Raise/Lower: |
Counterbalanced, spring tensioned head pivots on two 7/8” flange block bearings |
Blade Coolant: |
Dual spray tubes, pump fed (electric models), pump from tray (gas models) |
Air Filter: |
3-stage cyclone (gas models) |
Fuel Capacity: |
1 gallon (gas models) |
High Temp Shut-off: |
Included (electric models) |
Part #'s and its respective CAT #'s where applicable, 3725 3726 3728 3732 8667 46870 46893 47884 48547 48548 23961 34008
