Diamond Products

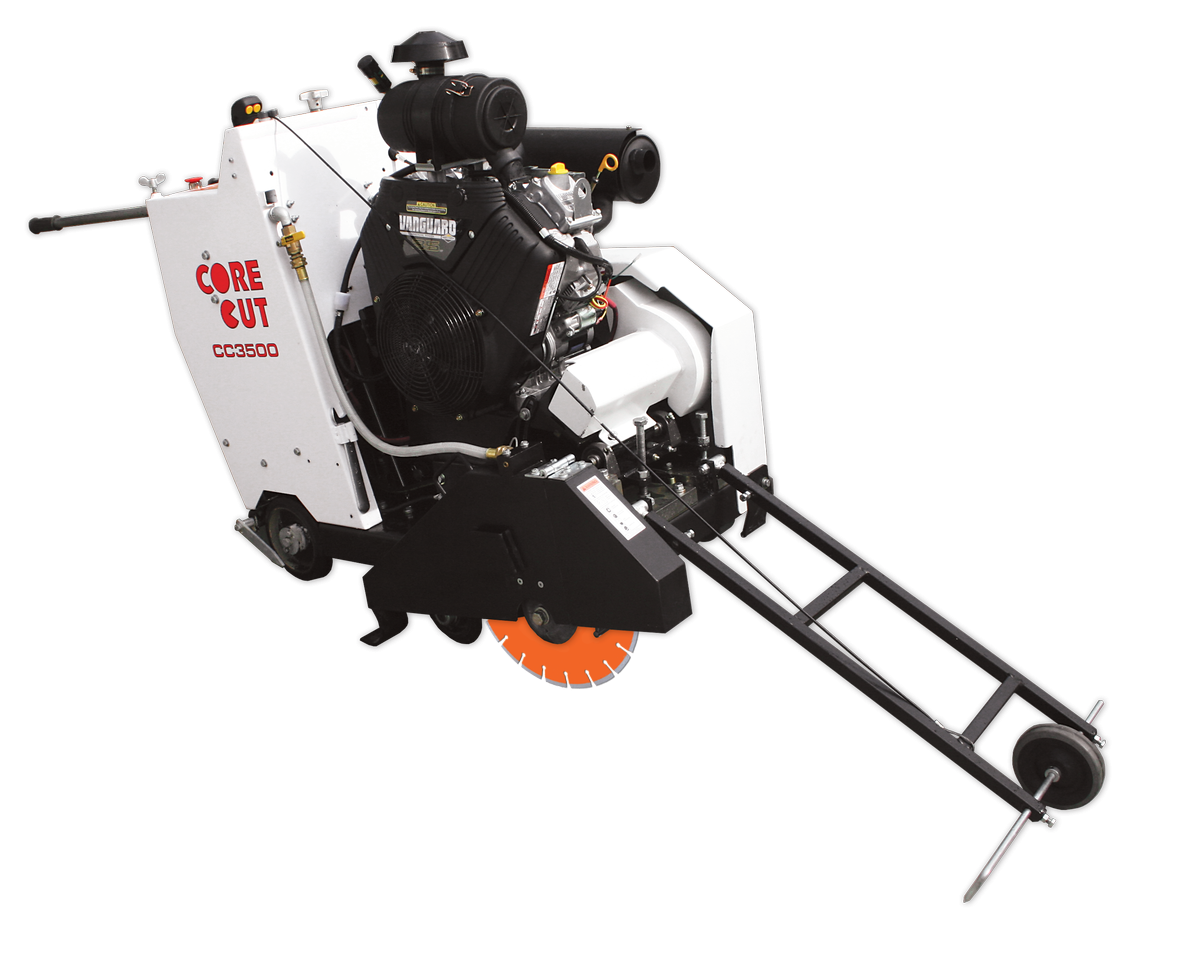

CC3500 Walk Behind Saws
CC3500 Walk Behind Saws
Regular price
$21,066.99 USD
Regular price
$22,530.99 USD
Sale price
$21,066.99 USD
Unit price
/
per
SKU: 03729
Couldn't load pickup availability
Features & Benefits:
- Great mid-size saw for service, utility work and rental
- Jack shaft allows full engine power
- Easy to maneuver self propelled drive
- Engine adjustment mechanism for belt tightening and maintenance
- Strongest frame on the market
- 30% more torque with new jack shaft design (on gas models)
- Fits through a 30” door frame
Specifications:
| Maximum depth of cut with 14” blade: | 4-3/8” |
| Maximum depth of cut with 20” blade: | 7-3/8” |
| Maximum depth of cut with 26” blade: | 10-3/8” |
| Maximum depth of cut with 30” blade: | 2-3/8” |
| Blade shaft diameter: | 1-3/4” |
| Arbor size: | 1” w/drive pin |
| Blade shaft drive: | 6 belt |
| Blade mounting: | Right or Left |
| Blade raise & lower: | Electro-hydraulic pump |
| Transmission: | Eaton Model 10 |
| Drive speed: | 0-200 feet/min |
| Air filter: | 4 stage |
| Fuel capacity (gas models): | 6 gallons |
- INCLUDES: Telescoping front pointer, Cutting depth indicator, Quick disconnect blade flanges, Hour meter, Frame lift.
Part #'s and its respective CAT #'s where applicable, 3729 3733 3739 3743 98161 14278 14279 33629 25319 25320 25324 25330 25331 25337 50441 2480 2506 20456
