Diamond Products

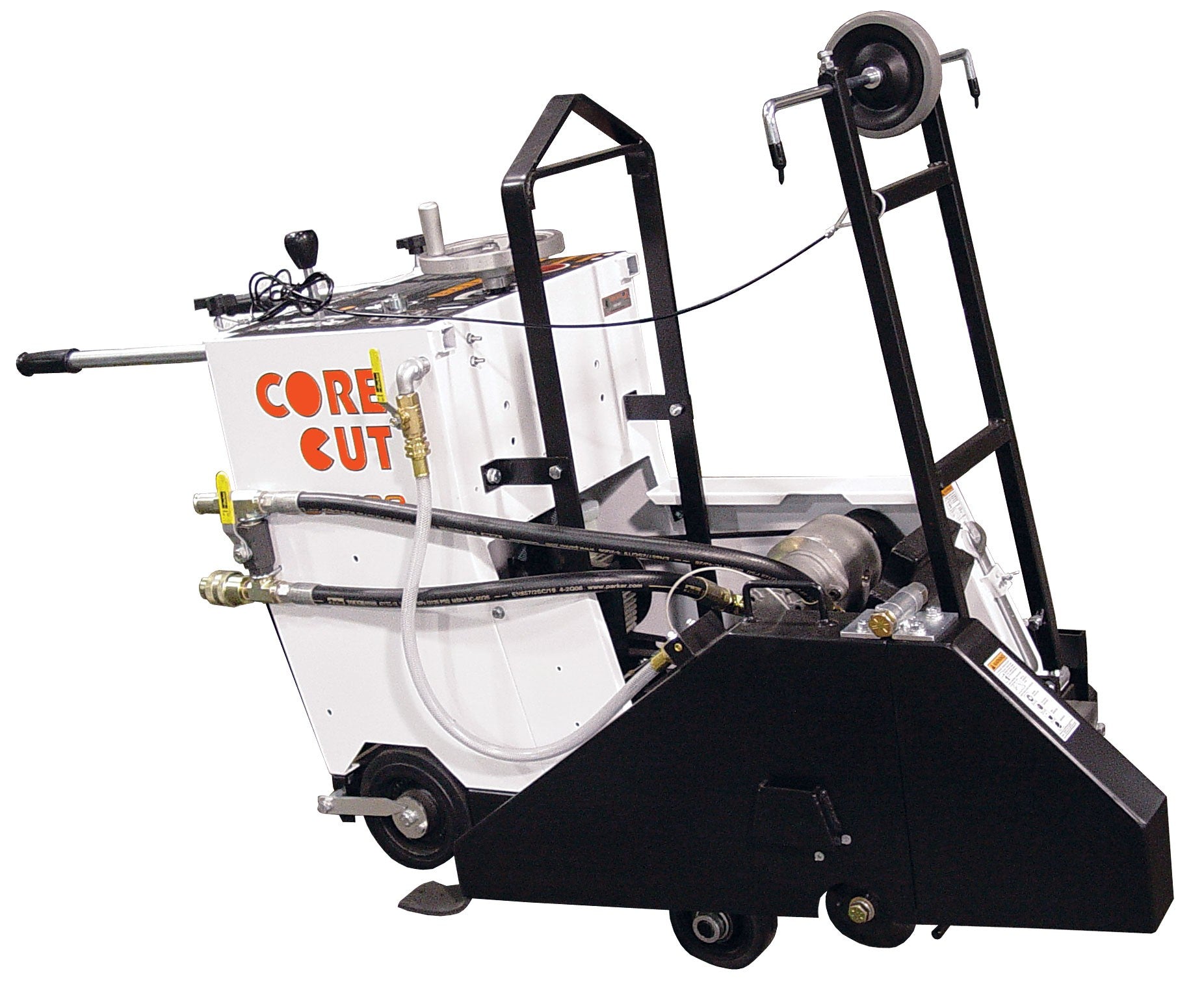

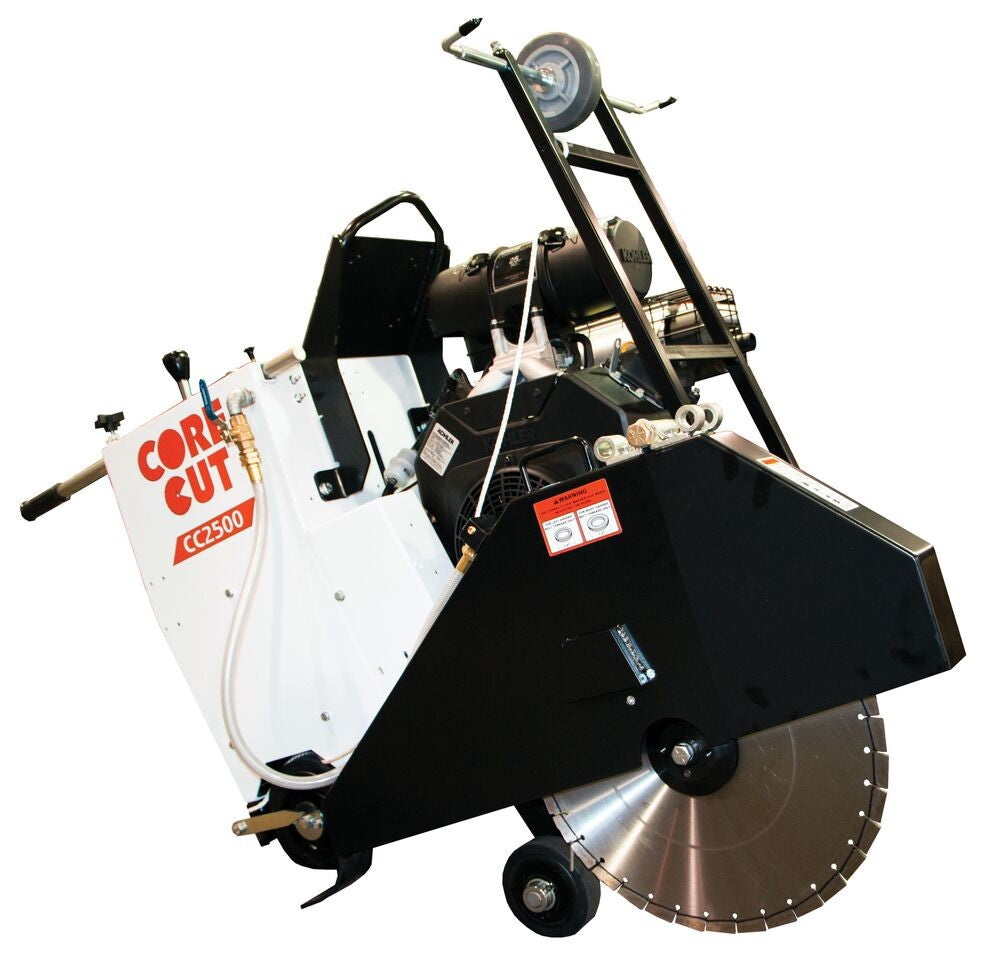

CC2500 Medium Walk Behind Saws
CC2500 Medium Walk Behind Saws
Regular price
$14,429.00 USD
Regular price
$13,116.99 USD
Sale price
$14,429.00 USD
Unit price
/
per
SKU: 94379
Couldn't load pickup availability
Features & Benefits:
- Rigid high strength 3/16” steel box frame with heavy bar reinforcement
- 2 position tilt handle bars
- Push or self propelled drive
- Screw feed raise and lower with optional power raise and lower
- Cyclone air filter on gas models
- Positive gear drive to rear axle via Eaton hydrostatic transmission
Specifications:
| Maximum depth of cut with 14” blade: | 4-5/8” |
| Maximum depth of cut with 20” blade: | 7-3/8” |
| Maximum depth of cut with 26” blade: | 10-3/8” |
| Blade shaft RPM: | Varies |
| Blade shaft diameter: | 1-1/2” |
| Arbor size: | 1” w/drive pin |
| Blade shaft drive: | 4 belt up to 20.8HP, 5 belt for 25HP |
| Blade mounting: | Right or Left |
| Transmission (self propelled only): | Eaton Model 6 |
| Drive Speed: | 0-130 feet/min |
| Fuel Capacity (gas models): | 5 gallons |
INCLUDES:
Electric Start (20-25 HP models) Low Oil Alert Tach/Hour Meter (20-25 HP models) Frame Lift Quick Disconnect Blade Flanges Cutting Depth Indicator Telescoping front pointer
Part #'s and its respective CAT #'s where applicable, 52974 58340 61953 78817 79041 79042 47467 48002 48432 48433 94379 94409 98001 99980 29637 29638 34013 47164 48413 48418 48419 48426 48427 48428 93694 23197 25424 25426 47451 20011 19322 8213
