Diamond Products

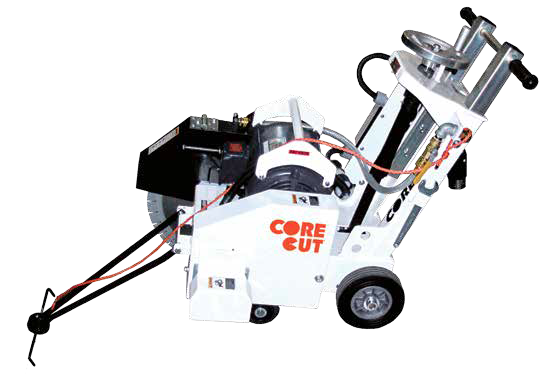

CC1500E Modular Saw
CC1500E Modular Saw
Regular price
$11,811.00 USD
Regular price
$10,736.99 USD
Sale price
$11,811.00 USD
Unit price
/
per
SKU: 19131
Couldn't load pickup availability
Features & Benefits:
- Electric powered for areas with limited access and where exhaust fumes are not allowed
- Easy to maneuver push drive

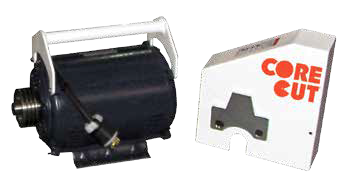

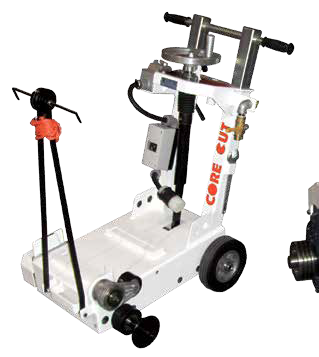

- Motor can be removed in limited access areas to allow for a single person operation
- Lightweight aluminum frame
- Screw feed raise and lower
- Heavy duty handle design
Specifications:
| Maximum depth of cut with 14” blade: | 4-5/8” |
| Maximum depth of cut with 18” blade: | 6-1/2” |
| Maximum depth of cut with 20” blade: | 7-1/2” |
| Blade shaft RPM: | 2,000 |
| Blade shaft diameter: | 1-1/4” |
| Arbor size: | 1” with drive pin |
| Blade Raise/Lower: | Precision screw feed |
| Handle Bars: | Adjustable |
Part #'s and its respective CAT #'s where applicable, 97883 97088 98682 78637 48388 19131
