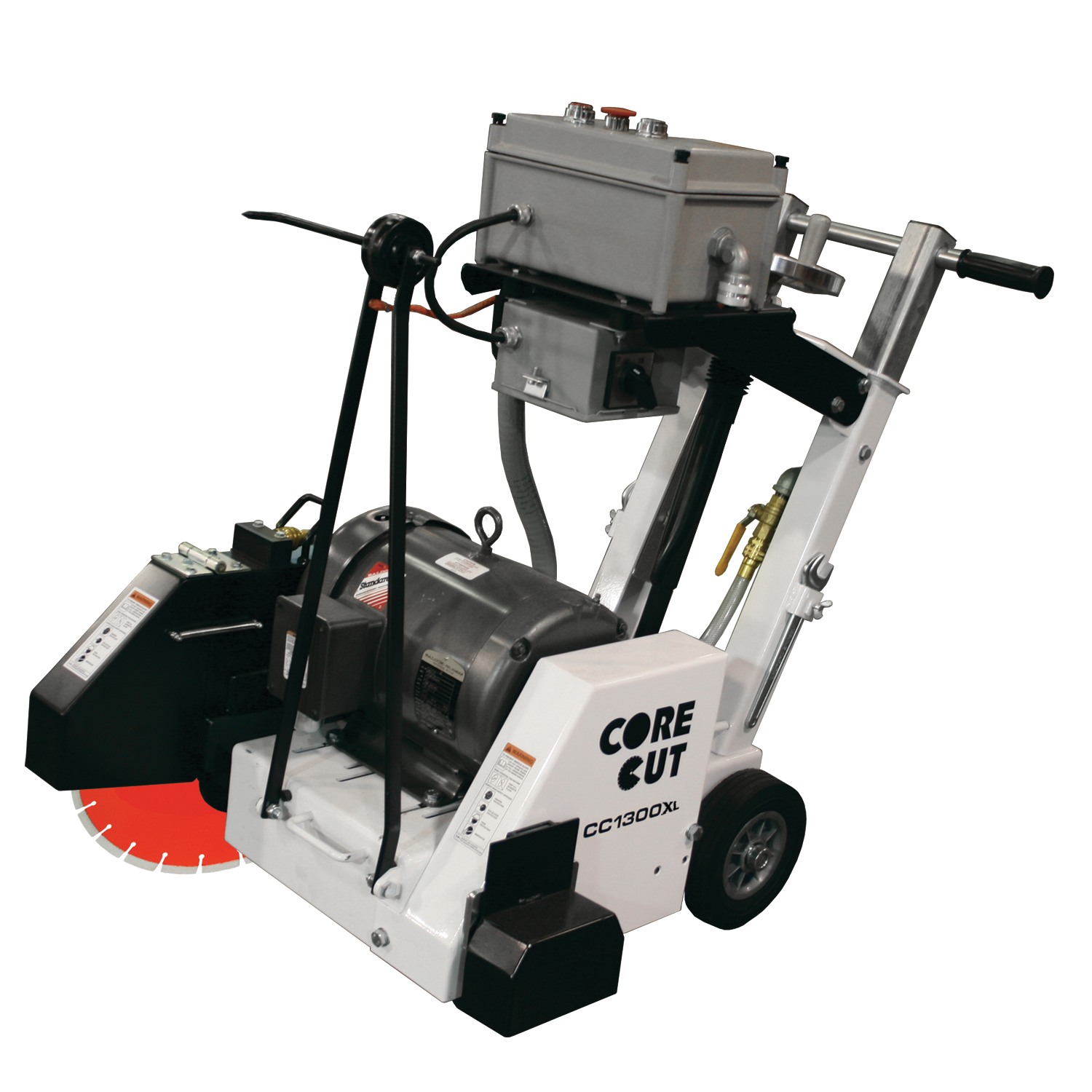

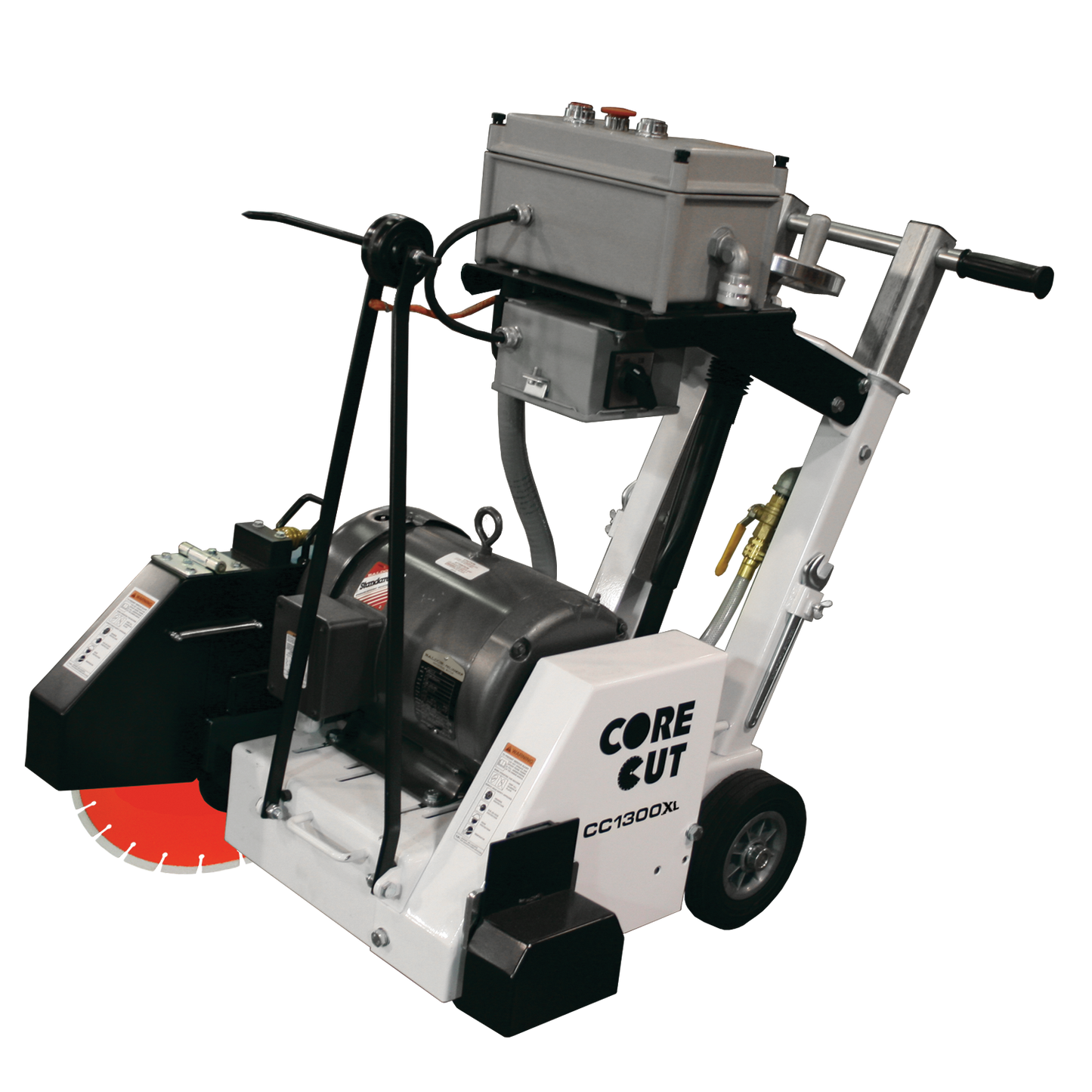

CC1300XL Small Walk Behind Saws

Heavy duty frame design
Cyclone air filter (Honda® models)
Easy to maneuver push drive
Four position heavy duty handles offer no slack and don't rattle like other adjustable handles
Through rear axle for added strength
Solid sealed and self aligning blade shaft bearings
Slip-on blade guard for easy blade access
Three V-belts for extra power delivery to the blade shaft
Left or right side sawing
Optional water tank available for dust suppression

Maximum depth of cut with 14" blade:	4-5/8"
Maximum depth of cut with 18" blade:	6-5/8"
Maximum depth of cut with 20" blade:	7-5/8"
Blade shaft RPM:	2,600
Blade shaft diameter:	1-1/4"
Arbor size:	1" with single drive pin
Blade mounting:	Right or left
Blade raise/lower:	Precision screw feed
Handle bars:	Adjustable
Parts List # (Gas):	1801801
Parts List # (Electric)	1801809
Operator Manual #:	1801459

◊ Briggs 2100 Series models include a Diamond Products 3-year extended warranty. Horsepower and Torque as rated by the engine manufacturer.

Part #'s and its respective CAT #'s where applicable, 36252 93810 97080 99977 21855 26751 27131 37387 37388 50852 61491 61494 75066 75070
