Diamond Products

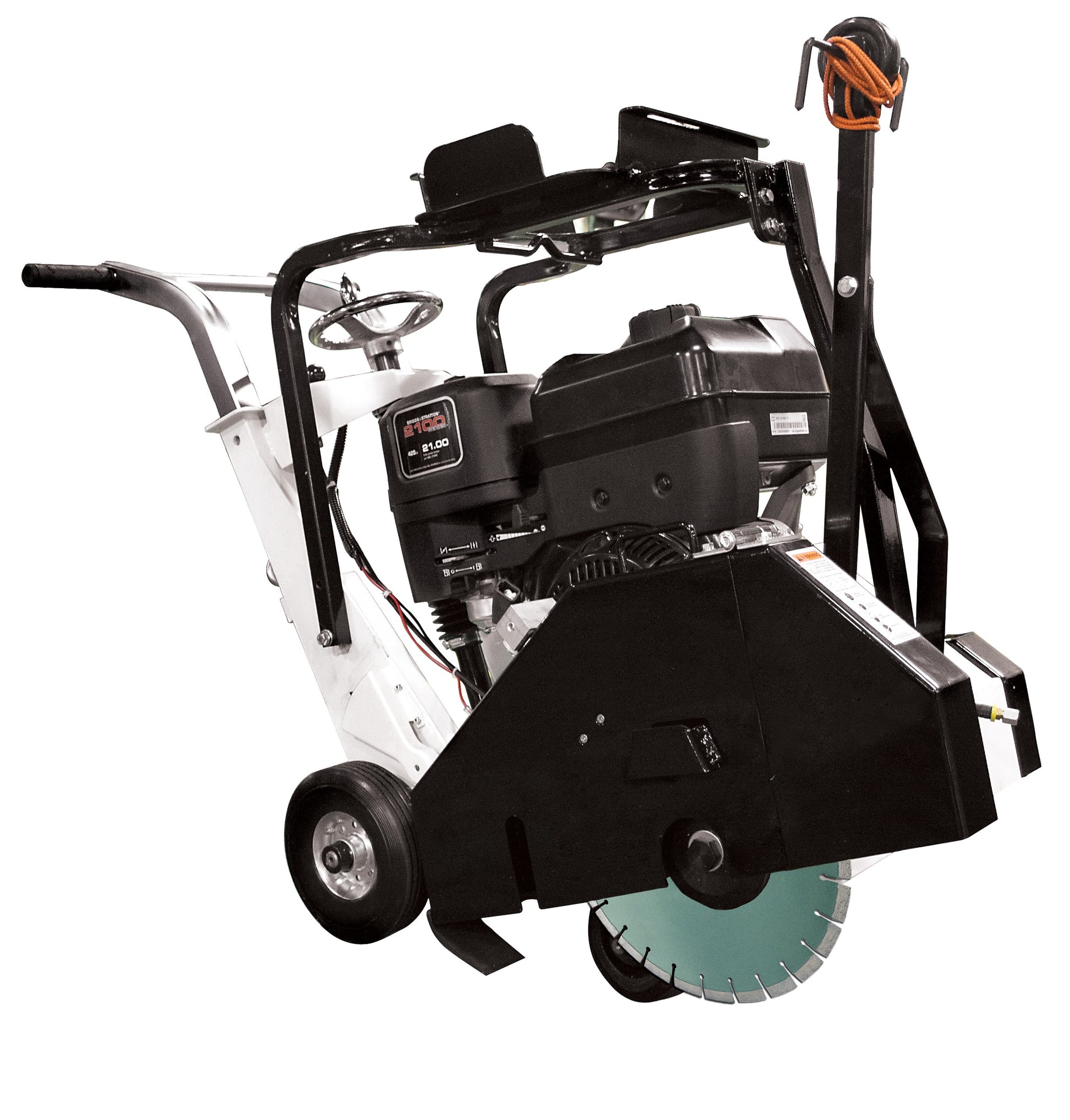

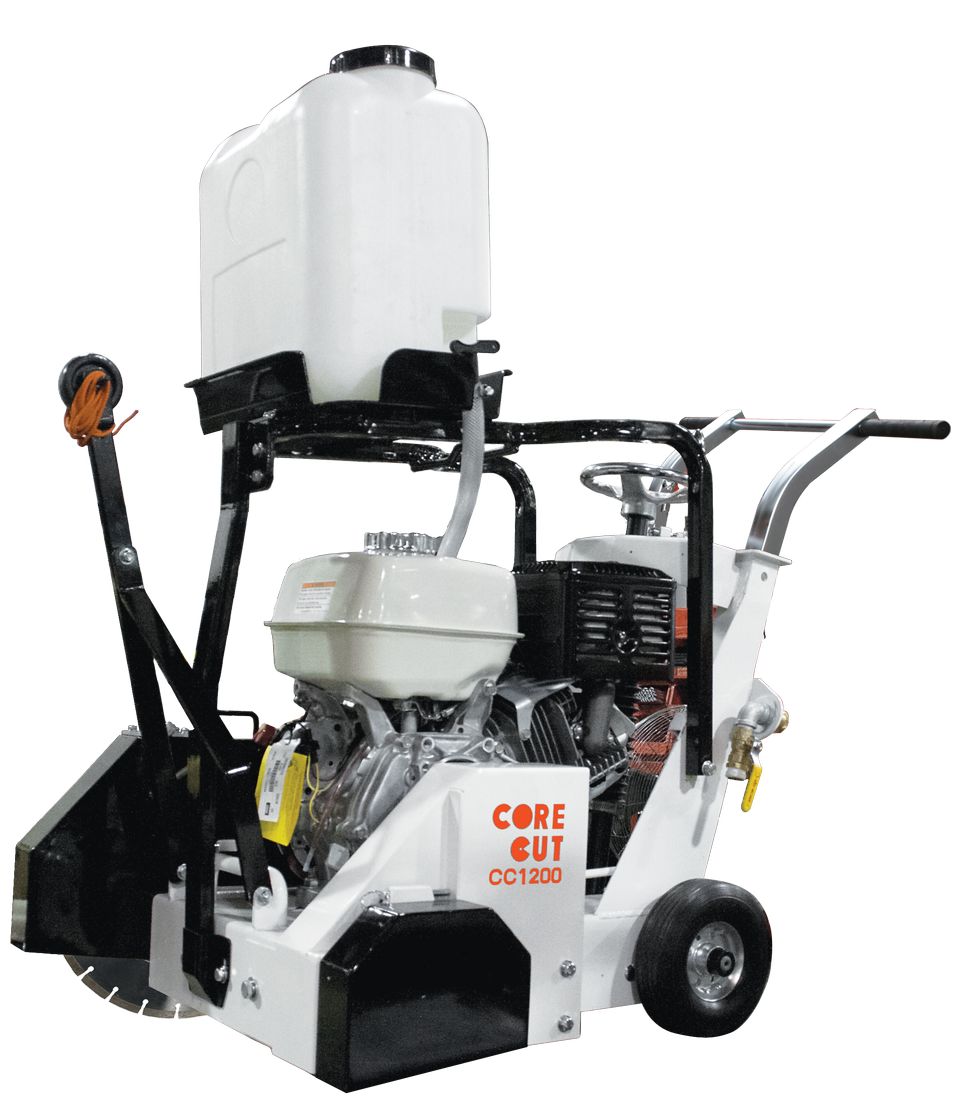

CC1200XL Small Walk Behind Saws
CC1200XL Small Walk Behind Saws
Regular price
$3,409.99 USD
Regular price
$3,645.99 USD
Sale price
$3,409.99 USD
Unit price
/
per
SKU: 32360
Couldn't load pickup availability
14” & 18” Blade Capacity
Features & Benefits:
- Heavy duty design, but light weight enough for two people to lift and carry
- Cyclone air filter (Honda® models)
- Easy to read built-in depth indicator
- Slip-on blade guard
- Heavy duty handles do not rattle like competitor handles
- Left or right hand sawing
- Single ribbed belt
- Water tank and lifting bale (tank optional-for dust suppression)
Specifications:
| Maximum depth of cut with 14” blade: | 4-5/8” |
| Maximum depth of cut with 18” blade: | 6-5/8” |
| Blade shaft RPM: | 2,600 |
| Blade shaft diameter: | 1-1/4” |
| Arbor Size: | 1” with single drive pin |
| Blade mounting: | Right or left |
| Blade raise/lower: | Precision screw feed |
| Handle bars: | Adjustable |
| Depth indicator: | Standard |
- ◊ Briggs 2100 Series models include a Diamond Products 3-year extended warranty. Horsepower and Torque as rated by the engine manufacturer.
Part #'s and its respective CAT #'s where applicable, 92016 92017 25948 39744 32360 32363 32365 32424 32453 32454
